30-3/4" W x 21-1/2" D x 5" H
FPEC3077RF
Features
SPACEPRO™ BRIDGE ELEMENT
2-in-1 cooktop element offers endless meal options. Cook two separate dishes at once, or combine two elements into one for large pots or griddle-use.
PRECISIONPRO CONTROLS™
Prepare a range of dishes with precision, whether you're simmering, sautéing, searing or boiling.
KEEP WARM ZONE
Consistently keep dishes warm while the rest finish for delicous results, every day.
POWERPLUS™ BURNER
Boil, sear, and saute with power. The PowerPlus™ Burner delivers strong performance, every time.
INDICATOR LIGHT
Informs you when the surface is hot.
GENERAL SPECIFICATIONS
- Product Weight (lbs): 55
- Power Type: Electric
- Size: 30''
- Installation Type: Drop-In
- Collection: Frigidaire Professional
DIMENSIONS: EXTERIOR
- Depth: 21-1/2"
- Height: 5"
- Width: 30-3/4"
CERTIFICATIONS & APPROVALS
- ADA Compliant - All Brands: Yes
- Sabbath Mode: No
ELECTRICAL SPECIFICATIONS
- Amps @ 240 Volts: 39.2 / 34.1
- Connected Load @ 240V: 9.4 / 7.1
- Min Circuit Required: 40A
- Connection Location: Front Right
- Voltage Rating: 240V / 208V 60Hz

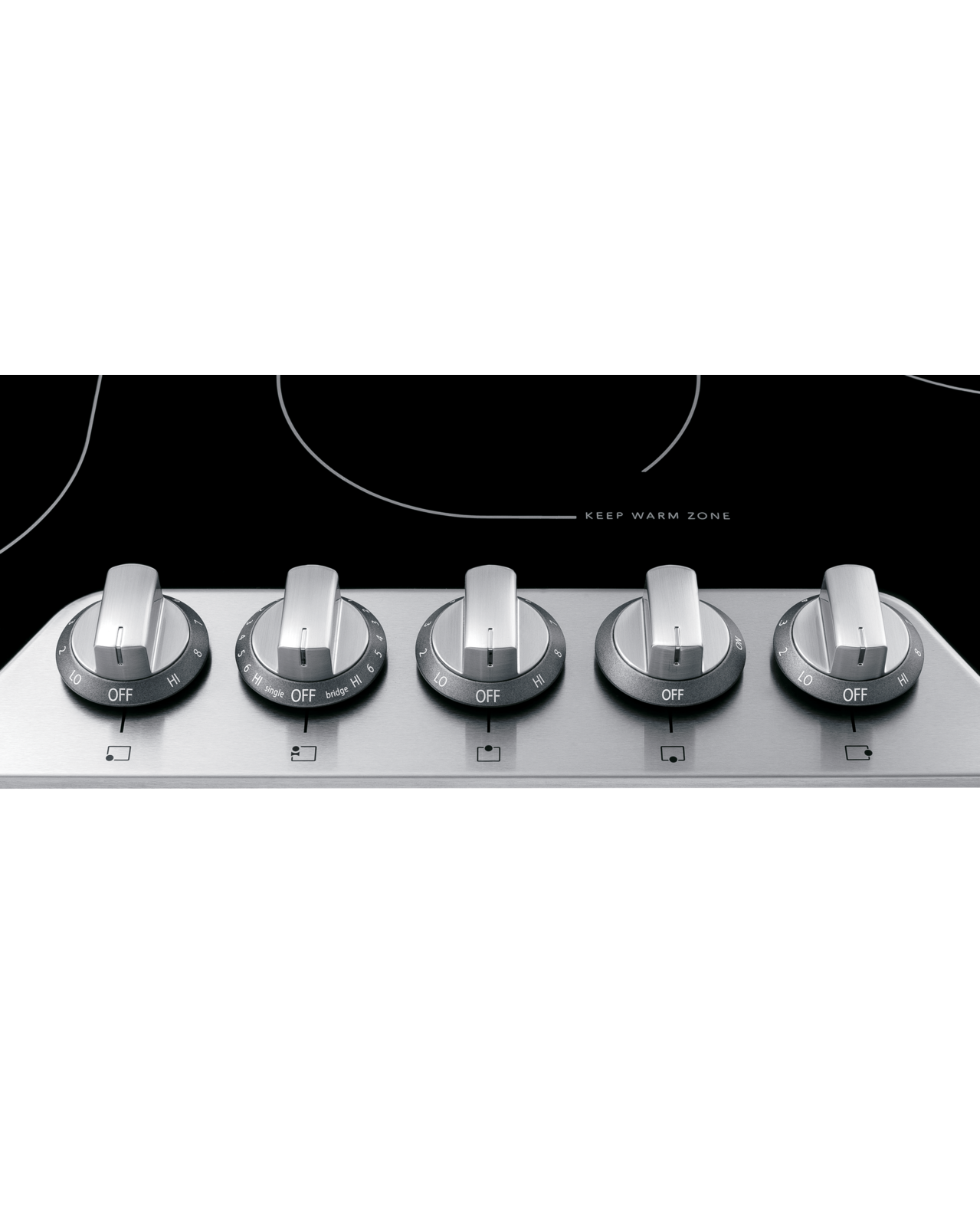

CONTROLS
- Control Location: Front
- Control Type: Electronic with Knobs
COOKTOP
- Center Rear: 100 Watts (Keep Warm)
- Cooking Surface: Black Ceramic Glass
- Hot-Surface Indicator Light: 5 (integrated in display)
- Knob Color: Stainless Steel
- Knob Type: Cast Metal SS
- Left Front: 7" Bridge - 1800/800 Watts
- Left Rear: 7" - 1800 Watts
- Right Front: 9/12" - 1800/3000 Watts
- Right Rear: 6" - 1200 Watts
- Cooktop Surface Type: Smooth Surface
